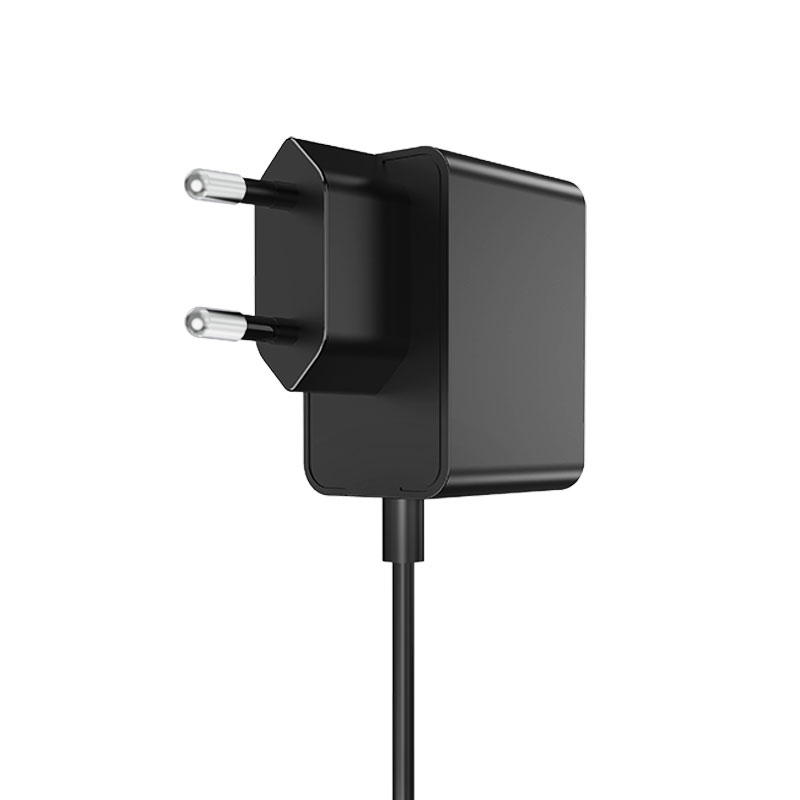

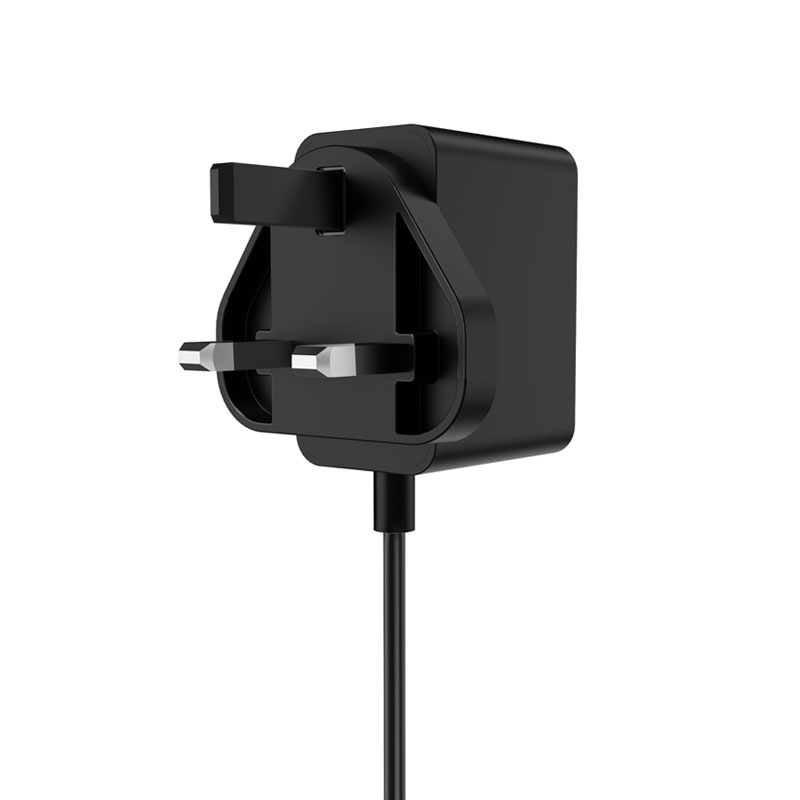

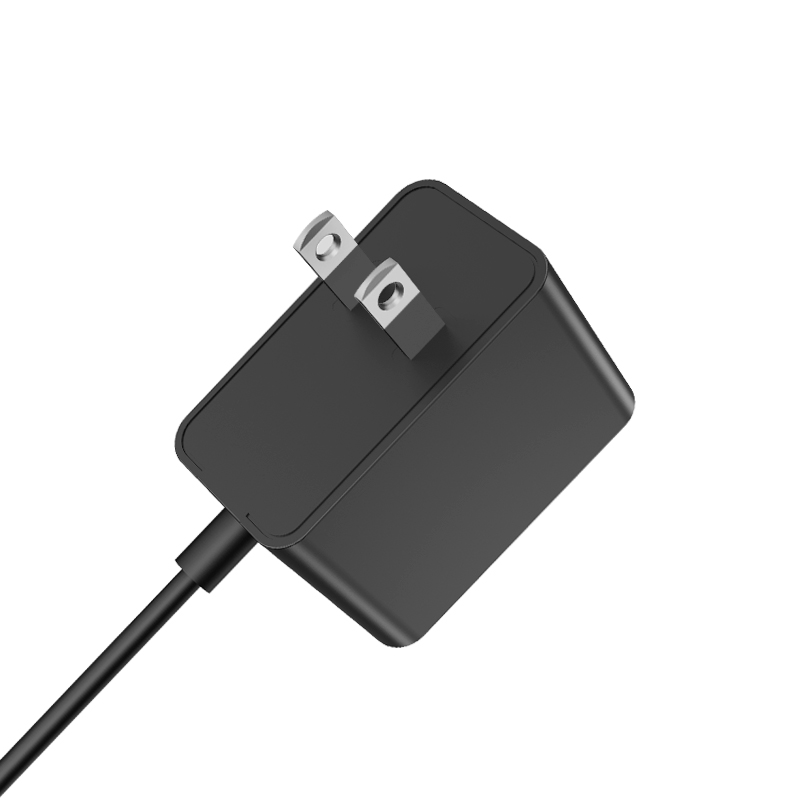

5V2A SiC Power Adapter - SK01H-001
Product Features of 5V2A SiC Power Adapter - SK01H-001:
1.Compact size, light weight, streamlined shape, fully sealed, easy to carry; side plug design without occupying socket space.
2.High cost performance and high reliability.
3.Built-in overvoltage, overcurrent and short-circuit protection.
4.Input characteristic: Voltage:100-240VAC±10%.
5.Frequency:50/60Hz.
6.Input current:0.7A Max.
7.Startup time:3s Max.
8.Inrush current at startup:50A/240VAC Max.
9.Output characteristic: Constant voltage & constant current mode, high precision and low noise.
10.Appearance patent and utility model patent.
11.Hold-up time:20ms Min.
12.Storage temperature: -20℃~85℃, 5%—95%RH.
13.Cooling method: Natural cooling.
14.Safety standards: IEC/EN62368/61558, UL62368/1310, GB4943/4706.
15.Comply with chemical standards including RoHS, REACH, MSDS and TDS.
16.Certifications: CCC, CQC, CE, ETL, FCC, SAA, KC, PSE.
17.MTBF: 50,000 hours.
|
Model No. |
Input Specifications |
Output Voltage (V) |
Output Current (A) |
Max Power (W) |
|
SK01H-XXXYYYYW (SK01H-001 18W) |
100—240V~ 50/60Hz 0.7A Max |
5.0-12.0 |
0.01-2.4 |
12.0 |
|
12.1-24.0 |
0.01-1.0 |
18.0 |
||
|
SK01H-XXXYYYYW (SK01H-002 24W) |
100—240V~ 50/60Hz 0.7A Max |
5.0 |
0.01-3.0 |
15.0 |
|
5.1-12.0 |
0.01-2.0 |
24.0 |
||
|
12.1-24.0 |
0.01-1.98 |
24.0 |
